HARDWARE THAT
SHIPS WITH
YOUR DOORS
The new Altura™ lift & slide handle, full sliding door hardware programs, 2-way and 3-way adjustable hinges — including the new TriAxis Pro™ — and multipoint lock systems. Engineered to OEM tolerances, supplied at production volumes, customized to your line.
DESIGNED FOR THE LINE,
NOT JUST THE DOOR
Hardware that integrates into your production — consistent tolerances, custom configurations, and one accountable manufacturer behind every component on the door.
Engineered security
Multipoint locking with three deadbolts on one key, deadlocking tongues and hooks, and adjustable hinges tested beyond ANSI Grade 3 standards — security hardware your spec sheet can stand on.
Custom OEM program
New door design without a handle to match? We design and manufacture custom handles, locks and hardware for mass production — from drawings to delivered components.
Production-ready supply
OEM volume pricing, consistent ISO9001 quality, and distribution across the US and Canada from Northern California.
Altura™ Lift & Slide Handles
The flush mount lift & slide handle for panoramic door walls: a 9″ ergonomic handle that reduces operating torque, spring-loaded automatic retraction with concealed magnet retention, and an exterior flush pull — in drop forged solid brass or zinc diecast.
- Handle9″ · auto-retracting, magnet retention
- Interior plate2″ × 18.96″ recessed
- ExteriorFlush pull, 1-1/2″ × 3-15/16″
- Spindles10mm & 7mm
- MaterialsDrop forged solid brass · zinc diecast
- FinishesBrushed Nickel · PVD Bronze · Matt Black + powder coat program
PART NOS. 88500033 (Brushed Nickel) · 88500004 (PVD Bronze) · 88500014 (Matt Black)

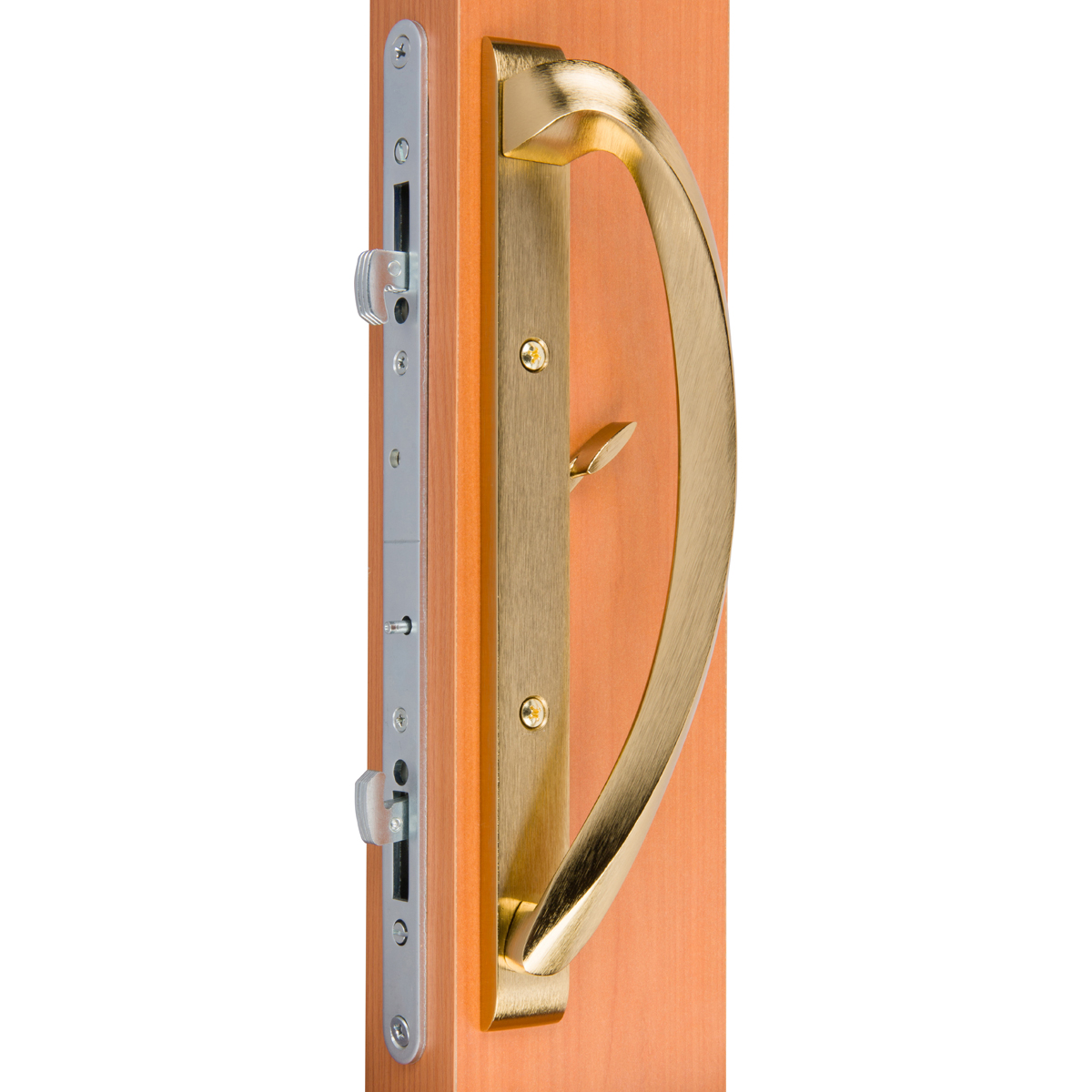

Sliding Door Handles
A full program of patio door handle series — Charlotte, Sonoma, Modena, Laguna, Sarasota, Venice, Pomona, Ultima and Savana combinations — in standard, center-keylocking, offset-keylocking and flush-pull configurations.
- SeriesCharlotte · Sonoma · Modena · Laguna · Ultima + more
- ConfigurationsStandard · center / offset keylock · flush pull
- Fit3-15/16″ CTC · doors to 1-3/4″ thick
- Finishes10+ incl. White · Matte Black · Tuscan Bronze · PVD
PART FAMILIES 88060… (Charlotte) · 88190… (Sonoma) · 88300… (Modena) · 88350… (Laguna) · 88900… (Ultima) · 89081/89901… (Savana combos)
Sliding Door Locks
The Apex adjustable dual-point mortise lock family in flush, recessed and surface mount, single-point mortise locks, and a full range of steel and stainless steel keepers from 1/2″ to 1″. Coming soon: the Apex MK5™ twin-hook dual-point lock — short faceplate flush mount and long faceplate surface mount, in steel and stainless steel.
- LockingAdjustable dual point · single point
- MountingFlush · recessed · surface
- Keepers1/2″ · 3/4″ · 7/8″ · 1″ — steel or stainless
- New · coming soonApex MK5™ twin-hook dual point
- ApplicationGlass patio doors — wood, aluminum, vinyl
PART NOS. 78010876/877/879 (Apex dual point) · 78010098/099, 78020885–890 (keepers) · 5000881 / 5000877 / 50000876 (single point) · 5000814 (keeper)
Sliding Door Rollers
Side-adjust tandem rollers that carry the door and keep it gliding: the 3900 and 5300 series in steel and stainless, precision-bearing tandems with 1-13/16″ wheels, and the Huskey heavy-duty line — rated from 200 lb to 500 lb per roller.
- AdjustmentSide adjust (vertical via side screw)
- Capacity200 / 250 / 400 / 500 lb per roller
- Per doorUp to 1,000 lb
- MaterialsSteel · stainless steel
- Door typesWood · aluminum · vinyl
PART NOS. 5000924 / 5000925S (3900) · 5300924 / 53021001/2 (5300 HD) · 5433925 (precision bearing) · 5533925 (Huskey)
Adjustable Hinges

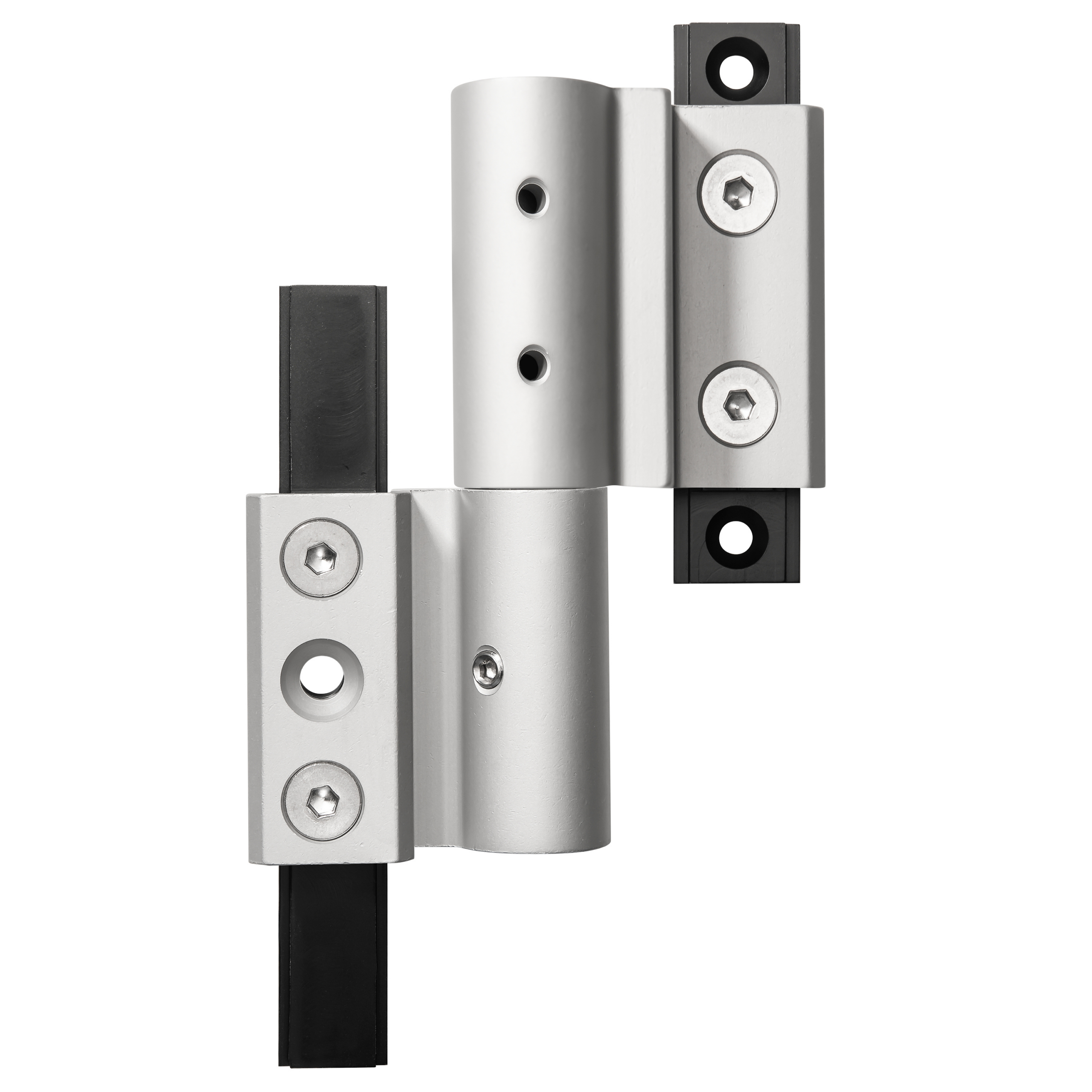

The M3 dual adjustable lift-off concealed ball bearing hinge — 1/4″ horizontal and 5/16″ vertical adjustment, tested to ANSI Grade 3 standards and exceeding the 350,000-cycle requirement — now joined by the new TriAxis Pro™ euro groove 3-way adjustable hinge for aluminum OEM doors (height +4mm, lateral ±2mm, compression ±0.25mm, 365 lb panels on 3 hinges, no door removal). Coming soon: a narrow-leaf ball bearing butt hinge for aluminum door profiles.
- Adjustability2-way (M3) · 3-way (TriAxis Pro™ · flag hinge)
- TestingM3: exceeded ANSI Grade 3 · 350,000 cycles
- TriAxis Pro™Euro groove · 365 lb · Allen-key adjust in place
- DesignLift-off · concealed ball bearing · non-removable pin

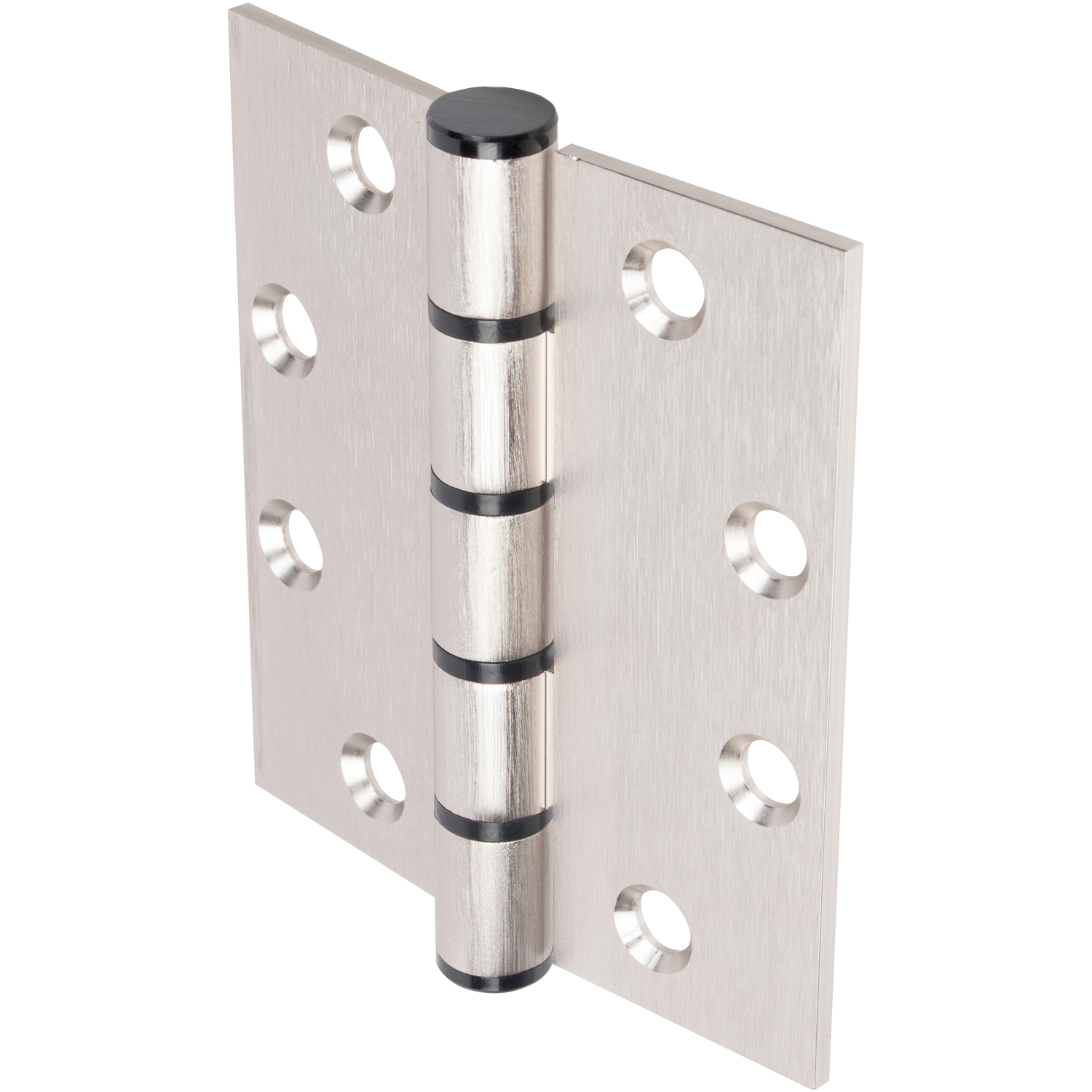

- New · coming soonNarrow butt hinge · euro clamp hinge
- Finishes10 incl. Matte Black · Brushed Stainless · Anodized Clear/Black
PART FAMILIES 12500…L/R (M3, handed) · TD128001628/335/F (TriAxis Pro™) · ZN3DMK2900WH (3-way flag) · SFHK1AL (replacement kit)
Multipoint Locks
Multipoint locking systems for American entry doors: the RS and XL Triple Latch series, ST systems with deadlocking tongues (steel and stainless), narrow-stile locks with deadlocking hooks, operable sidelite locks and the Defender mortise lock with emergency egress.
- SeriesRS · XL · ST · Defender
- LockingTriple latch · deadlocking tongues / hooks
- SpecialtyNarrow stile · operable sidelite · egress
- MaterialsSteel · stainless steel
- TrimSlimline & swing entry multipoint trim sets
PART NOS. 70108768/80 (RS) · 72228768/80 (XL) · 73228768/80, 73118868/80 (ST) · 2026497.1 (narrow stile) · TR28Z151890 (sidelite) · 70235110 (Defender)
NEW DOOR DESIGN?
WE’LL BUILD THE HARDWARE.
OEMs producing doors often have new designs with no handle to match. Rockwell® designs and manufactures custom door and window hardware for mass production — including lift & slide configurations, custom finishes and private packaging — in ISO9001-certified facilities.
FROM SPEC SHEET
TO PRODUCTION
Request OEM pricing
Send your company details, door types and annual volumes — we’ll respond with pricing, lead times and spec sheets.
Sample & validate
Test samples on your line. For custom work, our engineers iterate with your team until the hardware fits the door — not the other way around.
Production supply
Consistent ISO9001 quality at production volumes, shipped across the US and Canada from San Leandro, CA.
OEM QUESTIONS,
ANSWERED
What multipoint lock systems does Rockwell® manufacture?
The range covers American entry doors and specialty applications: the RS Triple Latch series, the XL Triple Latch entry door lock, ST locking systems with deadlocking tongues (including stainless steel versions), narrow-stile locks with deadlocking hooks, operable sidelite locks, and the Defender mortise lock with emergency egress feature.
Are Rockwell® adjustable hinges 2-way or 3-way?
Both. The M3 dual adjustable lift-off concealed ball bearing hinge adjusts 1/4″ horizontally and 5/16″ vertically, and was tested to ANSI Grade 3 standards — exceeding the 350,000-cycle test requirement. The new TriAxis Pro™ euro groove hinge and the ZN3DMK2900 flag hinge offer full 3-way adjustability.
Does Rockwell® supply lift and slide door hardware?
Yes. The Rockwell® Altura™ flush mount lift & slide handle features a 9″ ergonomic handle with spring-loaded automatic retraction and concealed magnet retention, drop forged solid brass or zinc diecast construction, 10mm and 7mm spindle options, and powder coated or architectural finishes — with custom configurations available through the OEM program.
What weight capacity do Rockwell® sliding door rollers support?
Side-adjust tandem rollers are available in capacities from 200 lb up to 500 lb per roller — 1,000 lb per door — in steel and stainless steel, for wood, aluminum and vinyl doors.
Can Rockwell® build custom hardware for our door line?
Yes. Custom-engineered hardware is core to the business: handle designs, finish programs, packaging and configurations are developed to your specification in ISO9001-certified facilities, with decades of OEM experience.
How do door manufacturers get OEM pricing?
Send your company details and volumes through the Request a Quote form and we’ll set you up with OEM pricing, lead times, spec sheets and samples.
GET OEM PRICING
ON DOOR HARDWARE
Tell us what you build and your volumes — we’ll send pricing, spec sheets, samples and the full OEM catalogue.
