Description

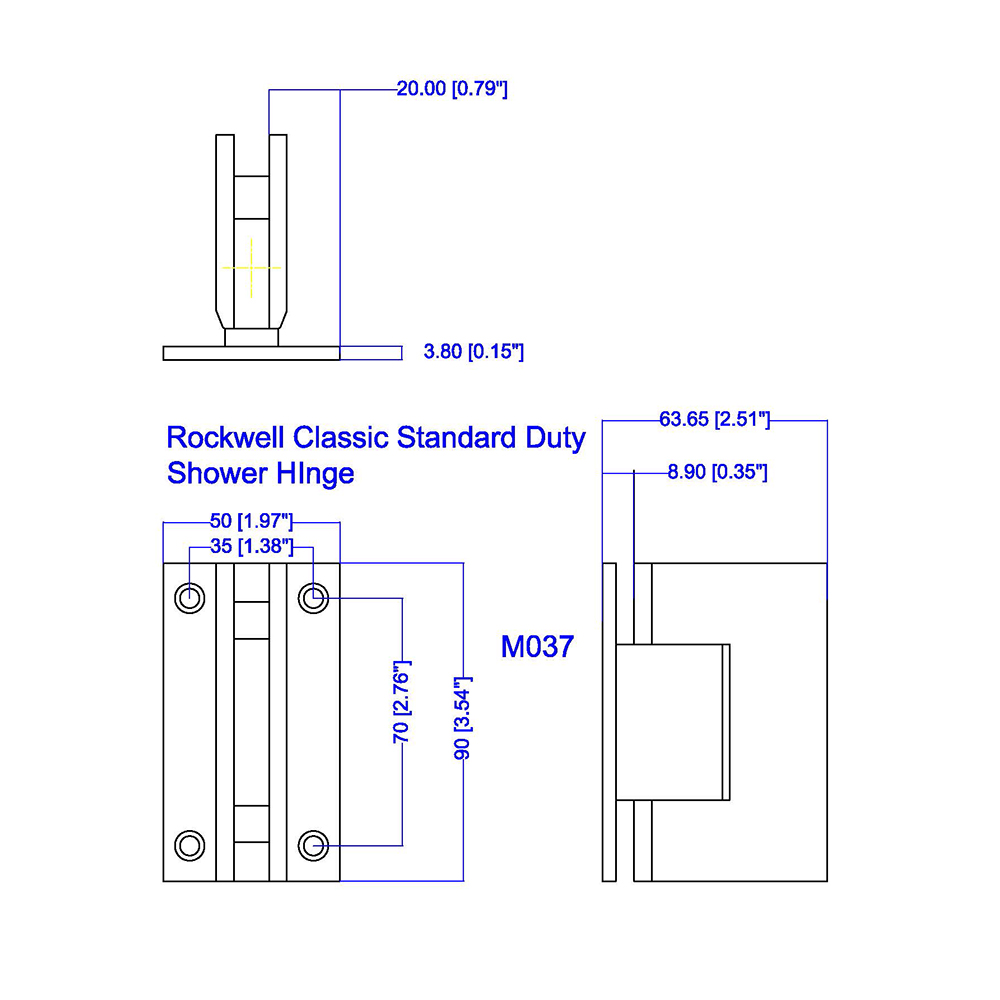

Classic Wall to Glass Shower door hinges fits 3/8″ to 1/2″ thick Tempered Glass
Square Corners Full Backplate
Hinge Preset at Zero Degree standard inline closing position
Finish: Brushed Nickel
Material: Solid Brass
Opening Angle 90 degrees
Stainless Steel hardened Coil Springs
90 degree angle opening
Self-centering when within 15 degrees of closed position
Available with reversible Pivot Pin
Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″
Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″
