Description

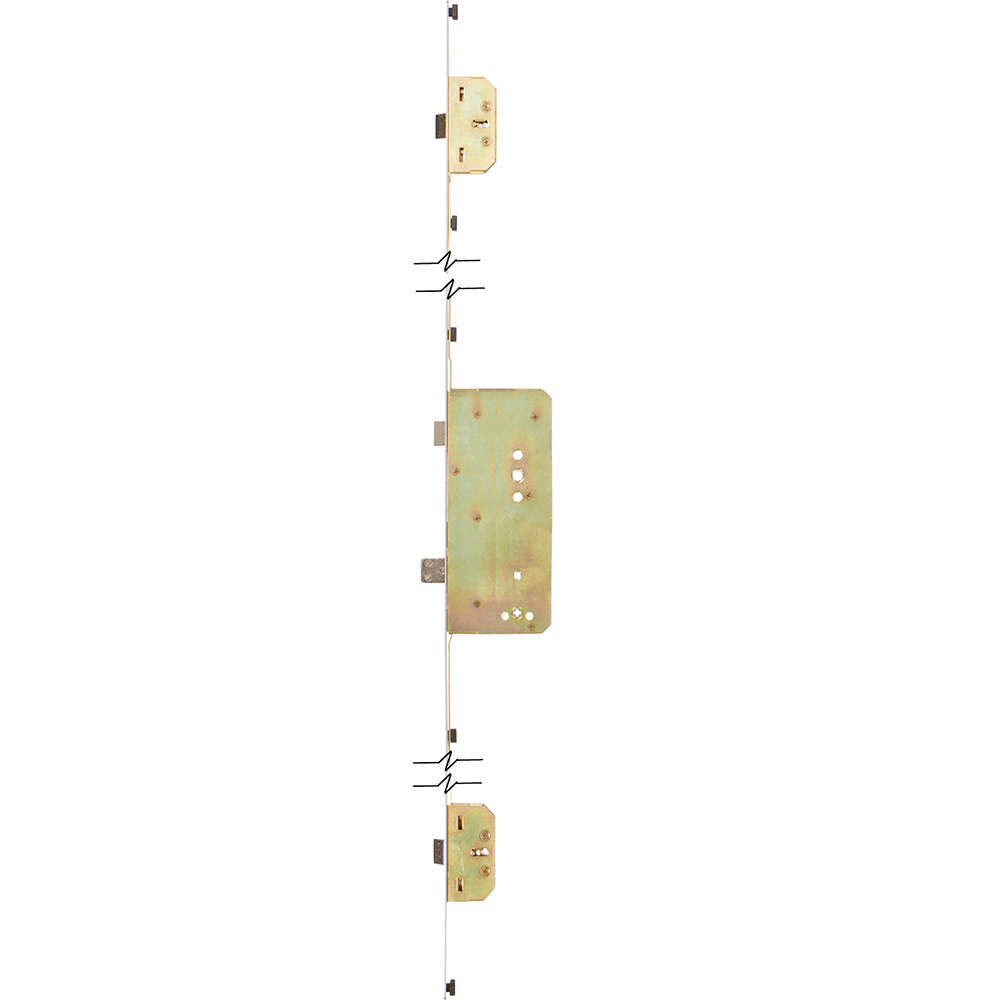

Automatic Independent Triple latching Multipoint lock
Anti-Saw, anti-jemmy, kick resistant center deadbolt for maximum security
90 degree consumer friendly locking operation
Visual Lock and unlock indicator
Material: Steel
One piece construction for ease of installation
Backset: 2-3/4"
Deadbolt: 1" throw with kickproof and anti-saw feature
Fits standard double bore with 5.5" hole centers and 2-1/8" double bore.
Faceplate: 0.787"(20mm)
Field reversible with a screwdriver

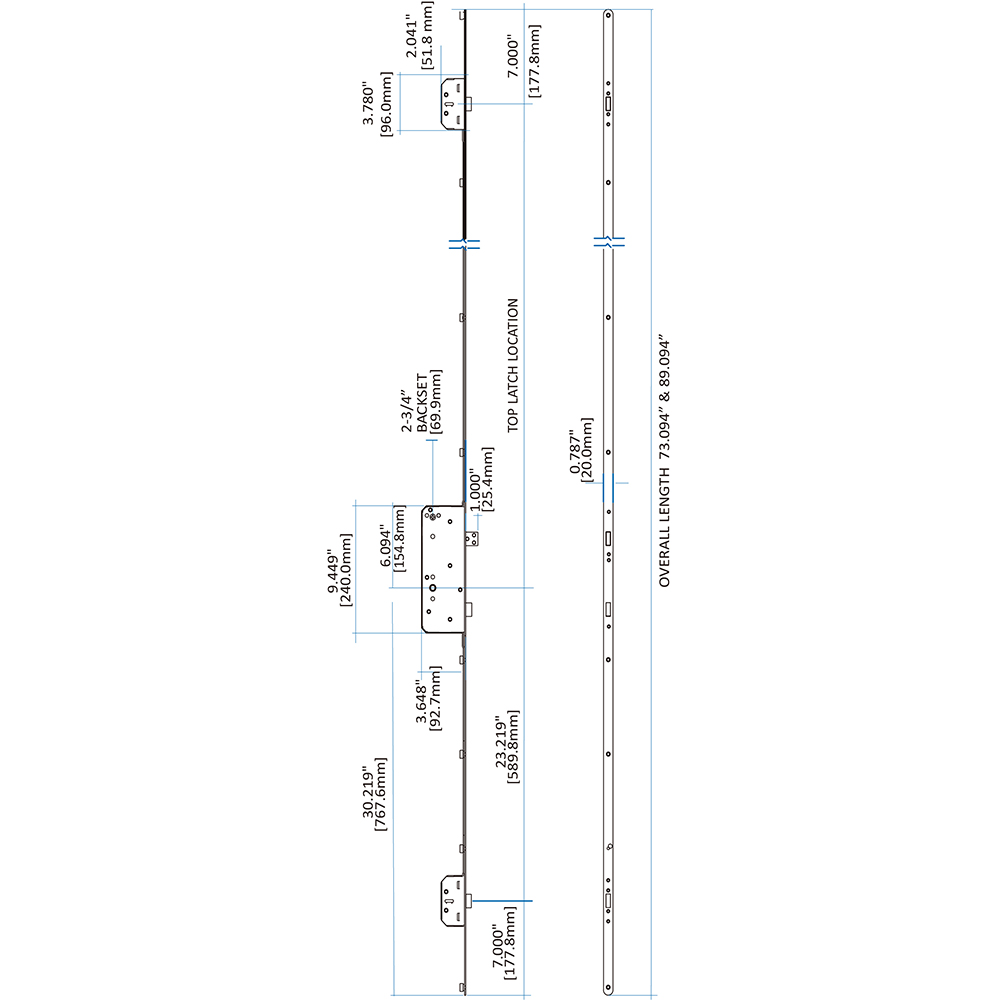

OVERALL LENGTH – 73.094″ OR 89.094″
70108768 – 73.094″
70108780 – 89.094″
