Description

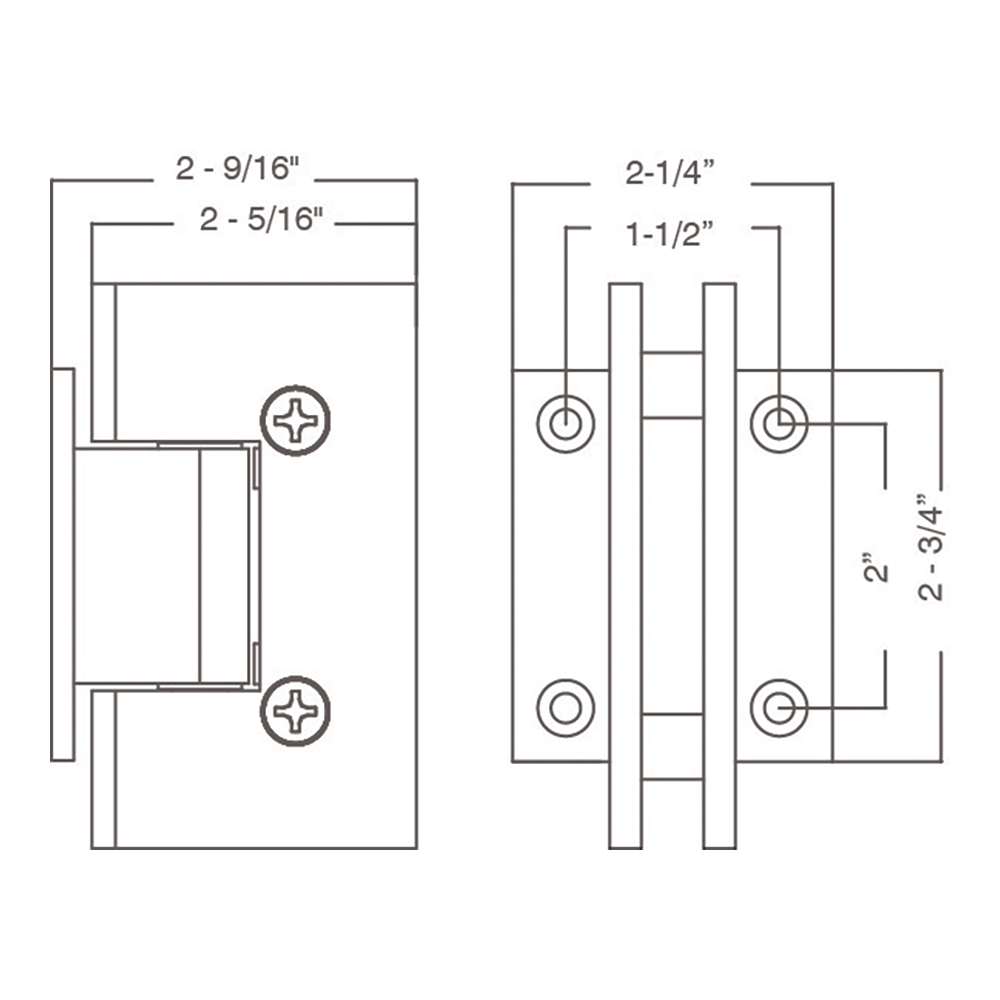

Heavy Duty Square Corner Shower Hinge, Short Back Plate in Brushed Nickel Finish
Solid Brass Drop Forged Construction
Glass Thickness 3/8″ (10mm) to 1/2″ (12mm) Tempered Glass
Stainless Steel Hardened Coil Springs and Pin
90 Degree Opening Angles
Self Centering with 15 Degree from Closing Position
Industry Standard Fits Typical Glass Cutout Templates Both Mouse Ears and Square Corners; Supplied with both Phillips and Allen Key Screw Heads
Accessories – Gaskets, Stainless Steel Mounting Screws, Allen Wrench, Template cutout dimensions
Using 2 hinges, with 3/8″ glass the hinge will hold up to 100 lbs. with a maximum door width of 34″
Using 2 hinges, with 1/2″ glass the hinge will hold up to 100 lbs. with a maximum door width of 32″
Using 3 hinges, with 3/8″ glass the hinge will hold up to 130 lbs. with a maximum door width of 34″
Using 3 hinges, with 1/2″ glass the hinge will hold up to 130 lbs. with a maximum door width of 32″
