Description

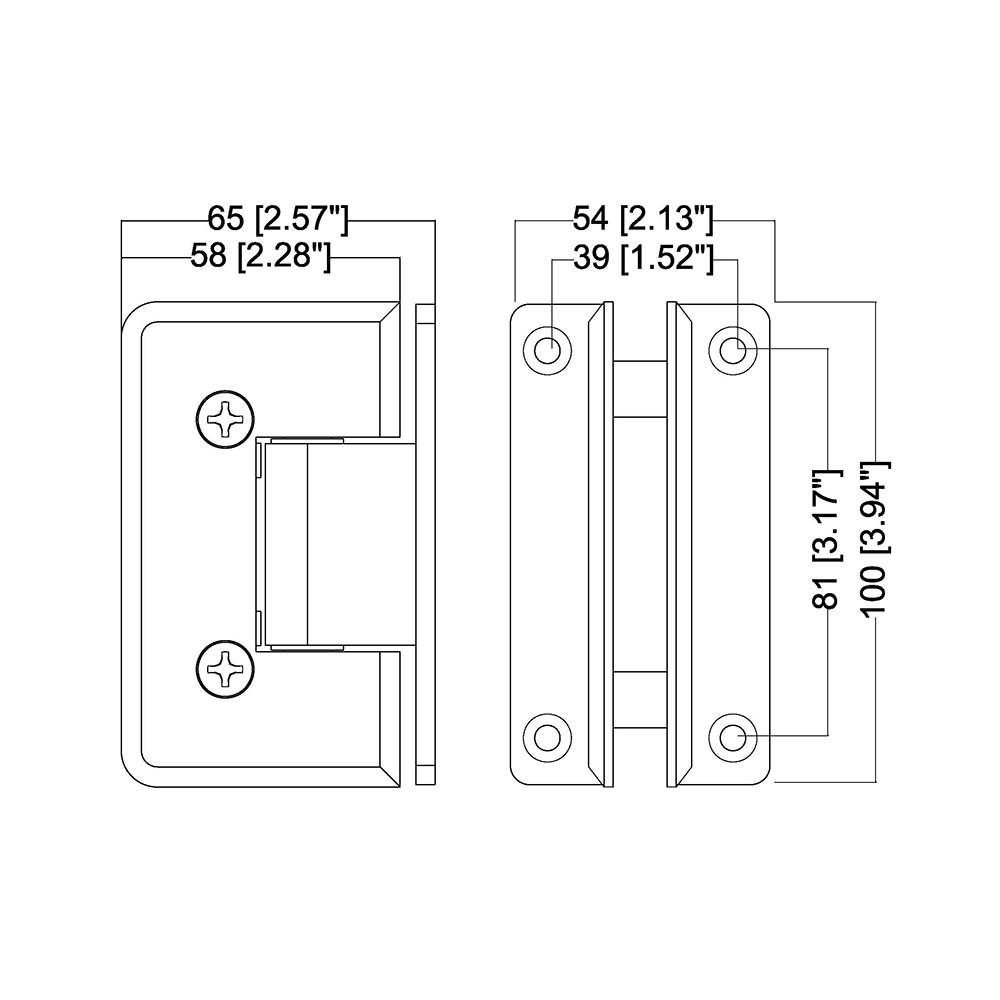

Rockwell Heavy Duty Bevelled Corner Shower Hinge
H Type Full Back Plate for heavy tempered Glass Shower Doors
Finish: Polished Chrome
Material: Solid Brass
Opening Angle 90 degrees
Stainless Steel hardened Coil Springs
90 degree angle opening
Self-centering when within 15 degrees of closed position
Stainless steel Reversible Pivot Pin
Supplied with Allen Hex and Phillips Screws
Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 110 lbs. with a maximum door width of 36″
Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 140 lbs. with a maximum door width of 36″
