Solid Brass Drop Forged Construction

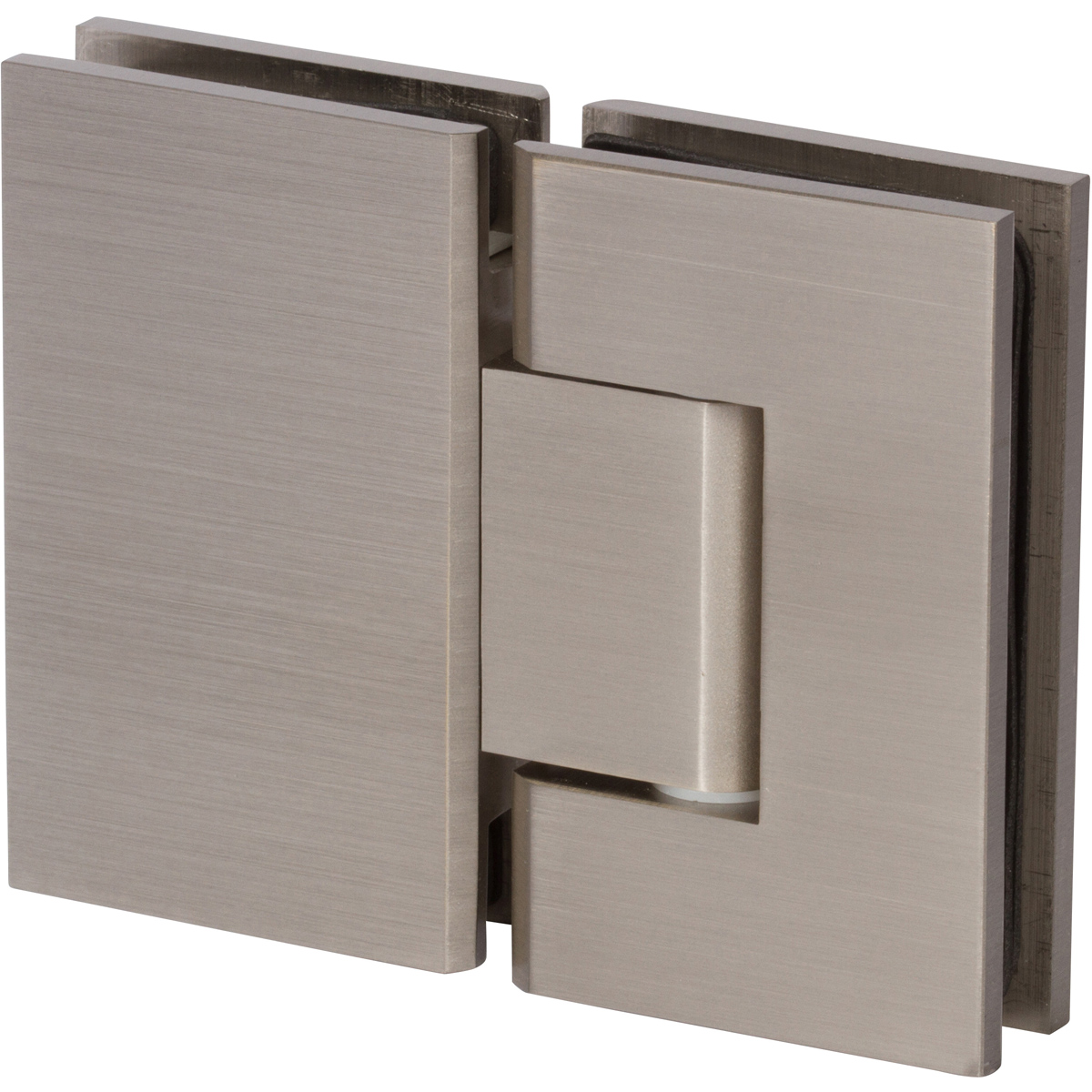

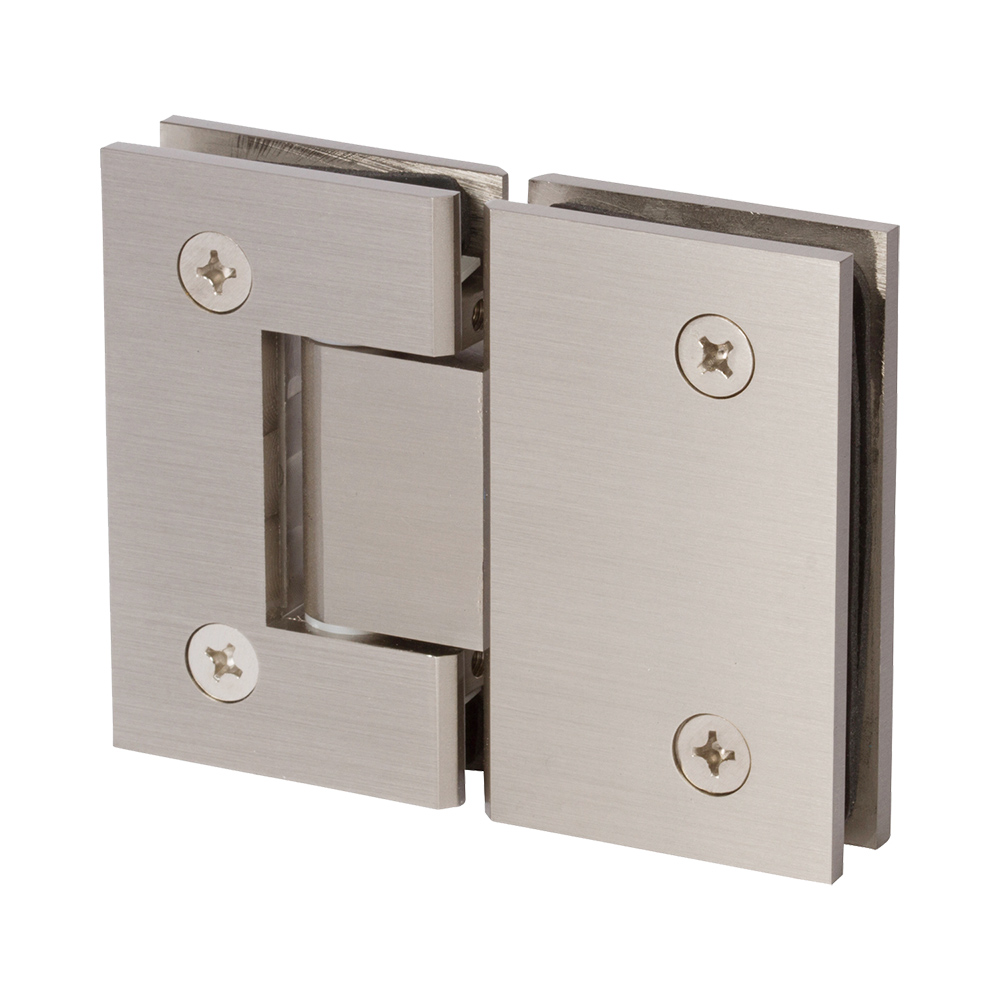

180 degree Glass to Glass Shower Door Hinge
Brushed Nickel Finish
Glass Thickness: 3/8″ (10mm) to 1/2″ (12mm) Tempered Glass
Stainless Steel Hardened Coil Springs and Pin
90 Degree Opening angles
Self centering within 15 degrees from closing position
Industry standard fits typical glass cutout template

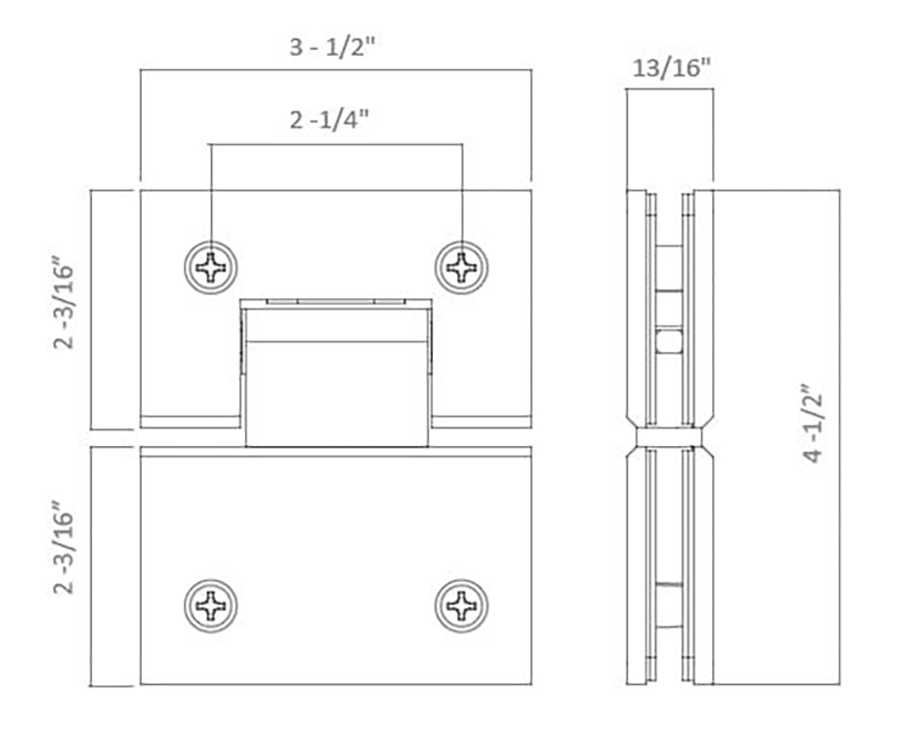

Accessories – gaskets, template cut out dimensions.
Using 2 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 80 lbs. with a maximum door width of 28″
Using 3 hinges, with 3/8″ to 1/2″ glass the hinge will hold up to 120 lbs. with a maximum door width of 32″
